# Creating a Window with Angled Rails

## Learn how to create a window with angled rails within integrate.

### **Key Points: Creating a Window with Angled Rails**

**1. Switch on angled rail properties**

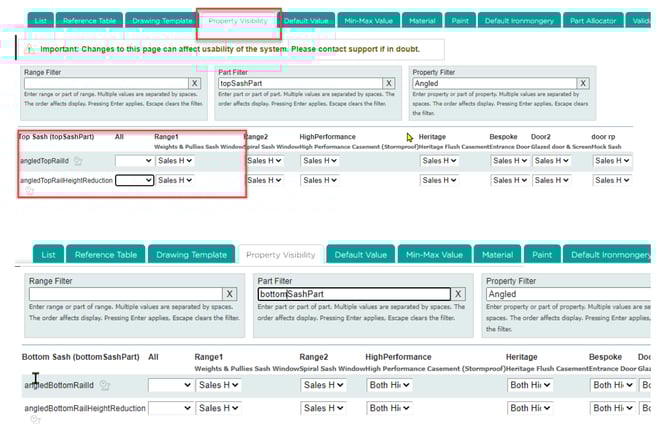

Ensure **angled top rail** and **angled bottom rail** properties are visible, for the top and bottom sashes on the drawing. If not, switch on under **topSashPart** and **bottomSashPart**, respectively.

![](https://knowledgehub.endtoendit.com/hs-fs/hubfs/image-png-Jan-16-2025-04-58-27-0001-PM.png?width=670&height=430&name=image-png-Jan-16-2025-04-58-27-0001-PM.png)

**2. Select the top sash**

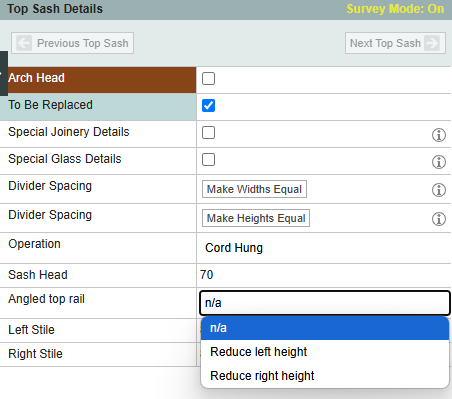

Select the **top sash**, pick an option for the **angled rail**.

![](https://knowledgehub.endtoendit.com/hs-fs/hubfs/image-png-Jan-16-2025-04-28-49-7057-PM.png?width=452&height=399&name=image-png-Jan-16-2025-04-28-49-7057-PM.png)



**4. Specify the angle**

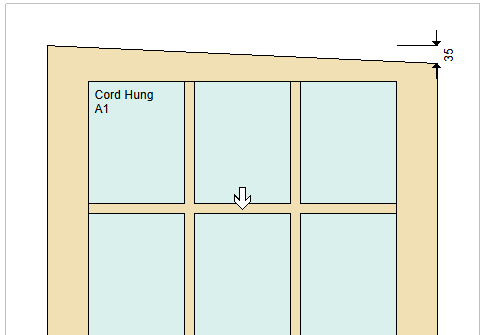

After selecting an option, a box will appear to specify how **steep** the **angle** should be.

![](https://knowledgehub.endtoendit.com/hs-fs/hubfs/image-png-Jan-16-2025-04-31-02-2276-PM.png?width=452&height=58&name=image-png-Jan-16-2025-04-31-02-2276-PM.png)![](https://knowledgehub.endtoendit.com/hs-fs/hubfs/image-png-Jan-16-2025-04-33-12-6157-PM.png?width=484&height=335&name=image-png-Jan-16-2025-04-33-12-6157-PM.png)



**4. Repeat for the bottom sash**

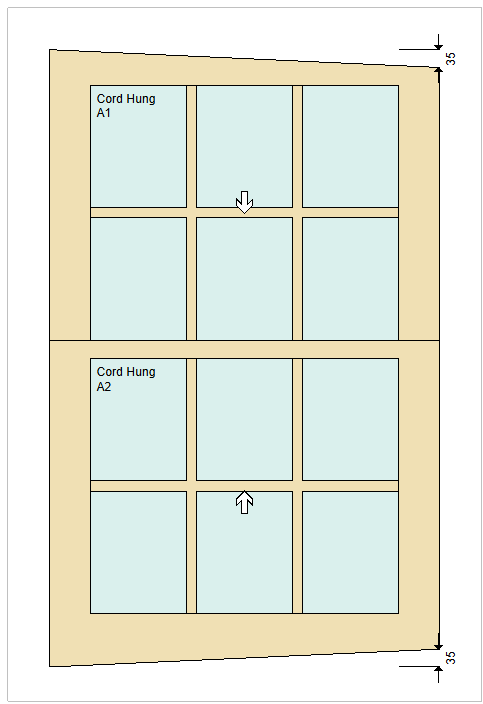

Select the **bottom sash**, pick an option for the **angled rail**, and specify how **steep** the **angle** should be.

![](https://knowledgehub.endtoendit.com/hs-fs/hubfs/image-png-Jan-16-2025-04-33-58-8184-PM.png?width=483&height=704&name=image-png-Jan-16-2025-04-33-58-8184-PM.png)
