Door Basics

Key Points: Door Basics

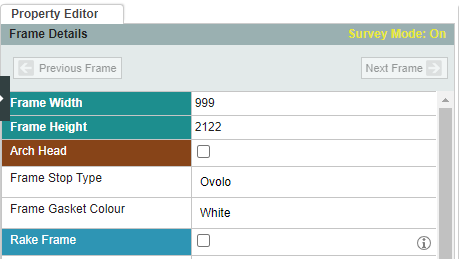

1. Change door dimensions
Select the frame, change the width and height, or select door leaf, then change the width and height between centre lines.

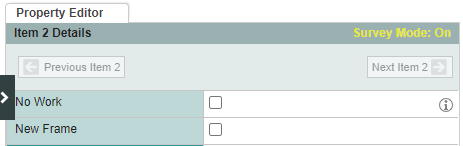

2. Remove the frame
When quoting for new door leaves only, select the item ,then untick new frame to remove the frame.

3. Change how the door is hung
Select the door leaf, then click the required option.

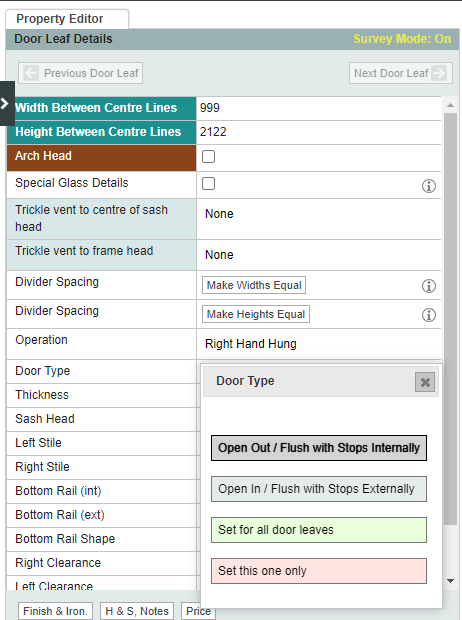

4. Change how the door opens
To change whether the door opens inwards or outwards, select the door leaf, then click the required option next to the door type. After choosing an option, apply the changes to the selected leaf only, or all the door leaves in the drawing.

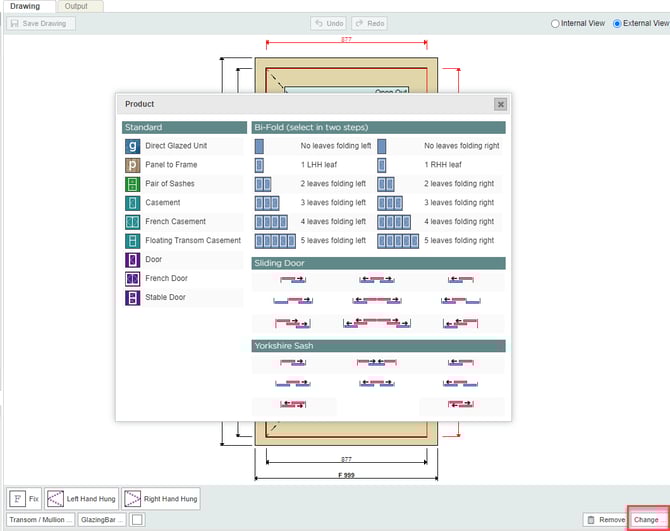

5. Change door type
To change a door type, for example, from a single door to a pair of French doors or a stable door, select the door leaf, click change in the bottom right of the screen, then choose the relevant option.
