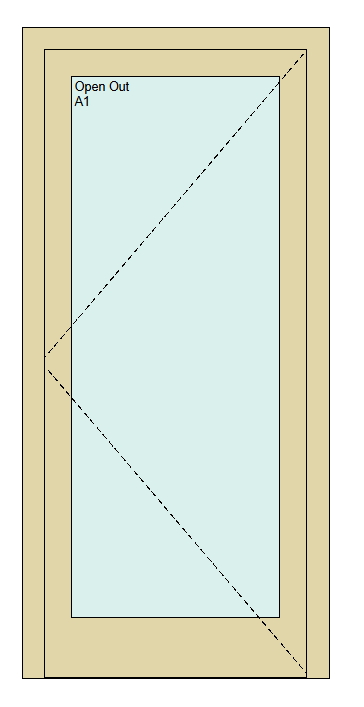

Drawing a Goalpost Frame

Key Points: Drawing a Goalpost Frame

1. Create a drawing

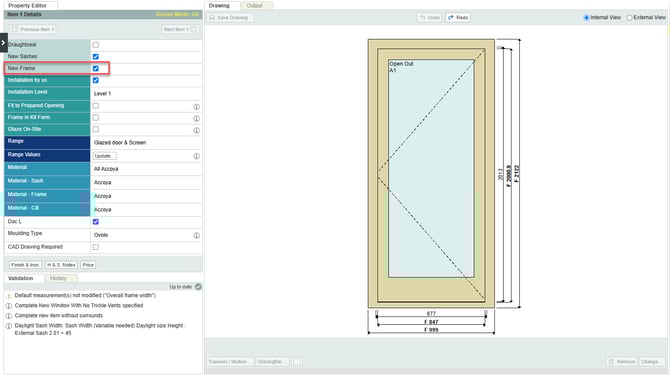

Create a drawing as normal, including a new frame.

2. Access the cill details

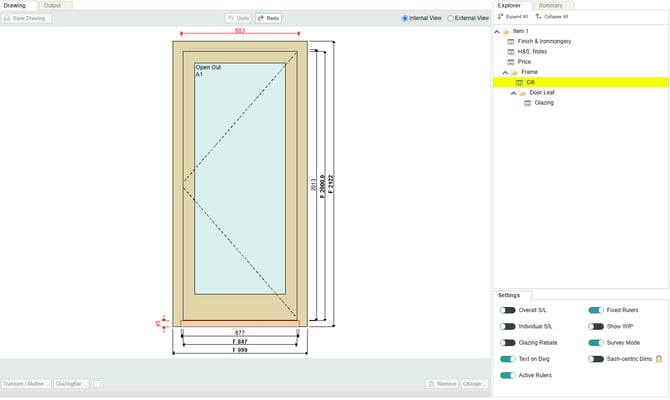

Click cill in the Explorer menu, or click on the cill in the drawing.

3. Open the cill editor

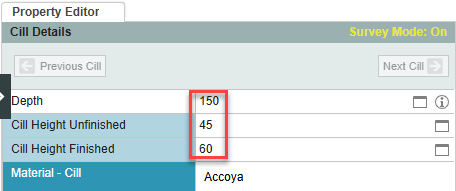

Navigate to the property editor, click on cill dimensions to open the cill editor.

4. When goalpost frame option is available

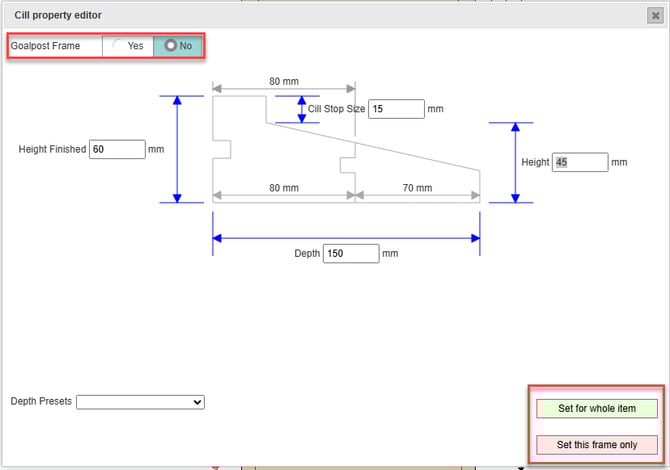

If there is a goalpost frame option in the top left of the screen, toggle the button to yes, then click set for whole item or this frame only.

5. When goalpost frame option is not available

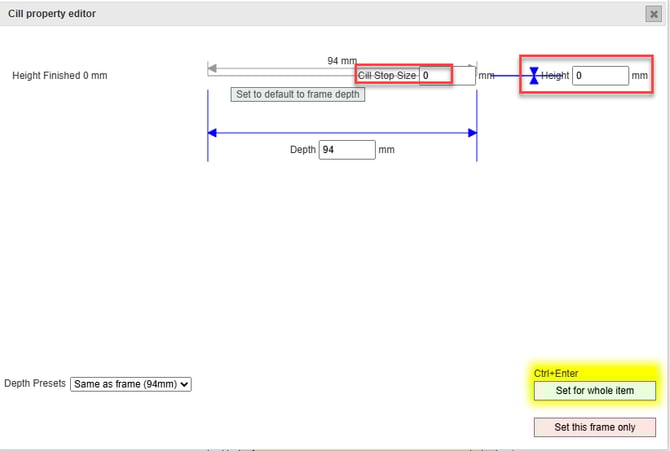

Set the cill stop size to 0  and the cill height to 0.
