Editing Glazing and Glazing Bars

Key Points: Editing Glazing and Glazing Bars

1. Change between single, double and triple glazing

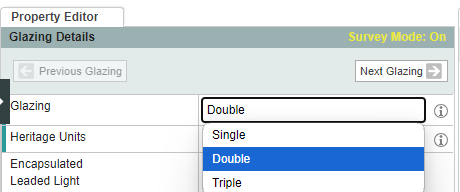

In glazing details, use the dropdown menu next to glazing. This option will apply to all glazed units in the drawing.

2. Change the glass type

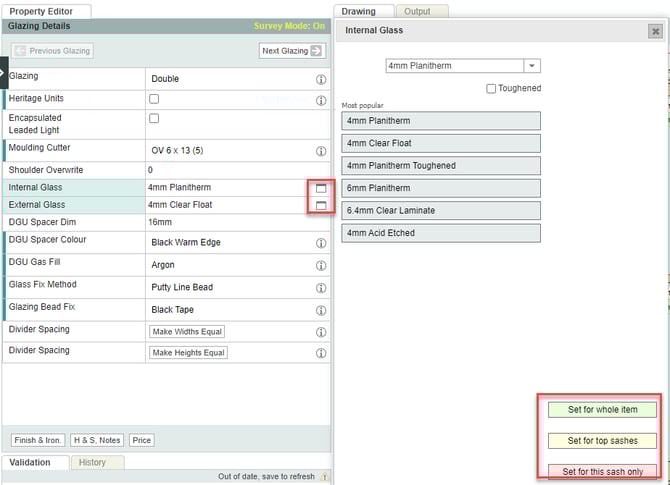

Click the dialog icon next to glass  or internal/external glass. Select a glass option, then choose whether to set for the whole item or specific sash(es).

3. Change spacer options
Use these options to change dimension, colour, and gas fill on double and triple glazed units.

4. Add glazing bars

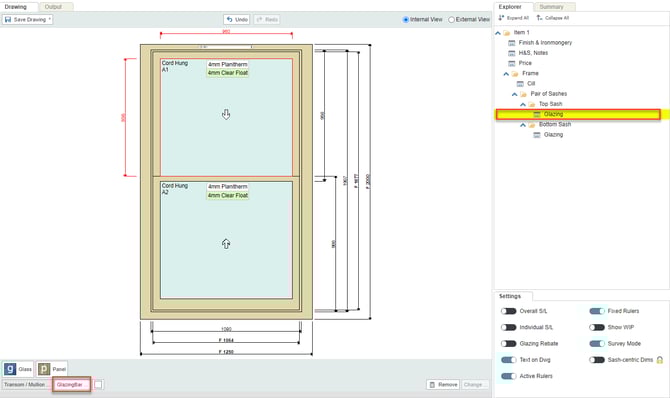

a. Select glazing, then click the glazingbar button below the drawing

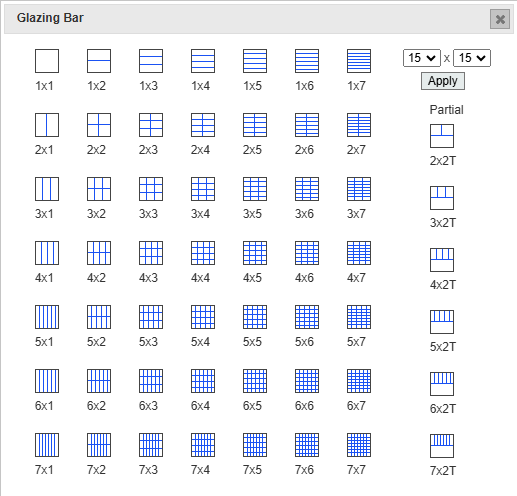

b. Then choose a glazing bar design (maximum 15 x 15 config)


c. The chosen design is applied to the selected glazed unit only

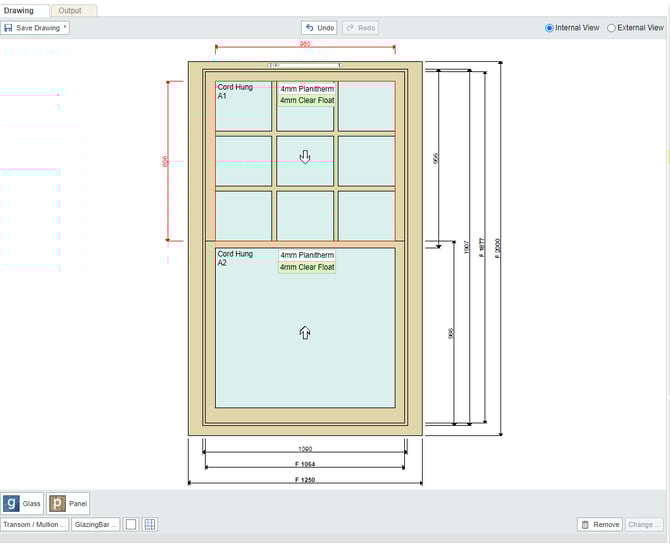

4. Toggle between panes of glass

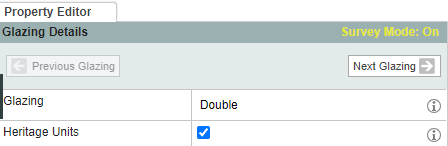

Toggle between separate panes of glass with solid bars, and a single pane of glass with astragal bars. For single-glazed use the individual panes tickbox. For double-glazed use the heritage units tickbox.

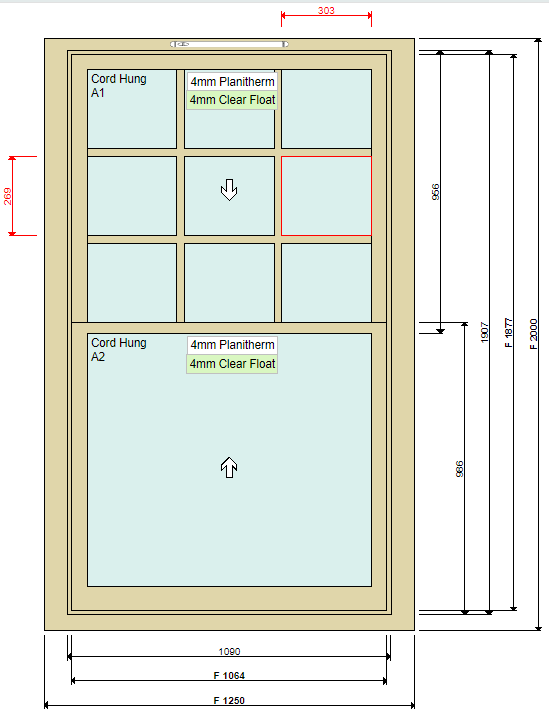

When ticked, each pane can be selected separately, to indicate they are true panes of glass separated  by solid bars.
