Half Circle unselects due to Radius Change

Find out what steps to take when the half circle option unselects itself.



Key Points: Half Circle unchecks due to Radius Change

1. The message in the history log
The message appears after adding a half circle and ticking curved sash head or arched outer jamb. The half circle option unselects itself, and the radius is automatically adjusted.

Radius has been automatically adjusted. Half circle has been unchecked due to radius change.


2. Why this message appears

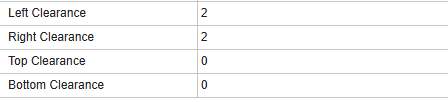

This most commonly happens when the mechanical clearances around the sash are not equal, preventing a perfect half circle arch from being drawn.

3. The solution
Adjust the mechanical clearances so the top clearance is the same as the left and right clearances. Change the defaults and templates to prevent this from recurring.
