Adding Ironmongery to a Drawing

Key Points: Adding Ironmongery to a Drawing

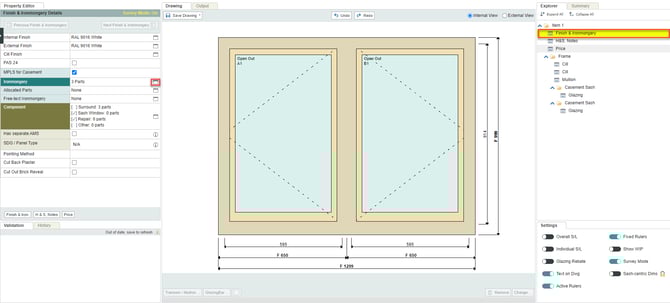

1. Open the ironmongery menu
Click finish and ironmongery on the right, then click the dialog button next to ironmongery on the left.

2. Customer-facing ironmongery menu
Any ironmongery added to the customer-facing ironmongery menu will be shown on the customer's quote.

Note: Ironmongery added via the allocated parts menu will not be visible on the customer's quote.

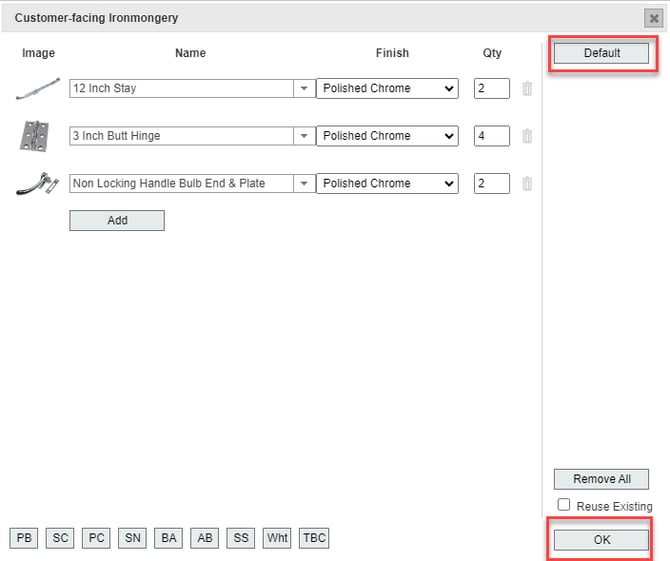

3. Automatically add ironmongery parts
Click default to automatically add the default ironmongery selection for the current design of window/door, then OK.

Note: If ironmongery ranges have been configured, there will be a default button for each range.

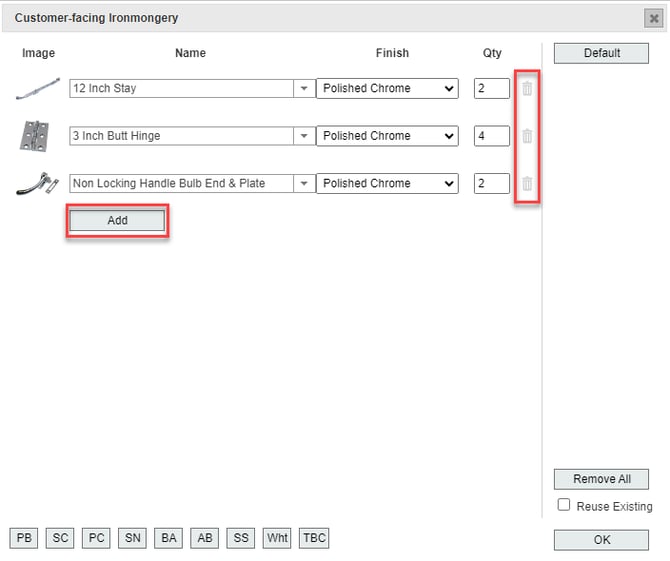

4. Manually add or remove ironmongery parts
Next to each ironmongery part, to add click the add button, to remove click the bin icon. Click OK to apply the current selection.

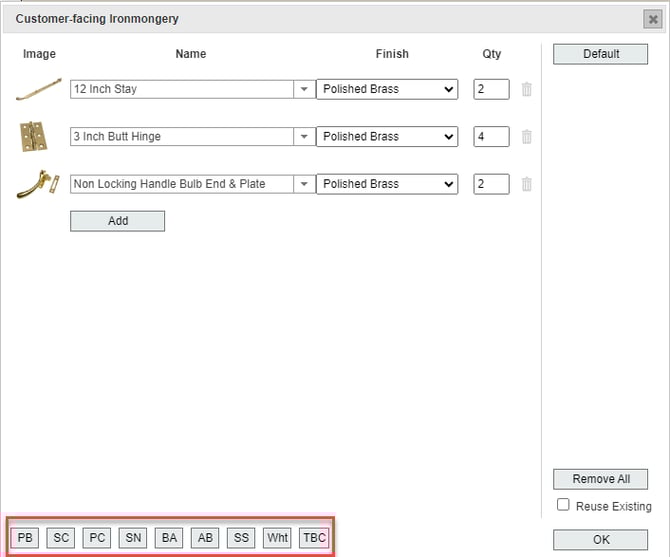

5. Change the finish of all items
Use the shortcut buttons along the bottom of the screen, for example PB for polished brass, SC for satin chrome. Click OK.

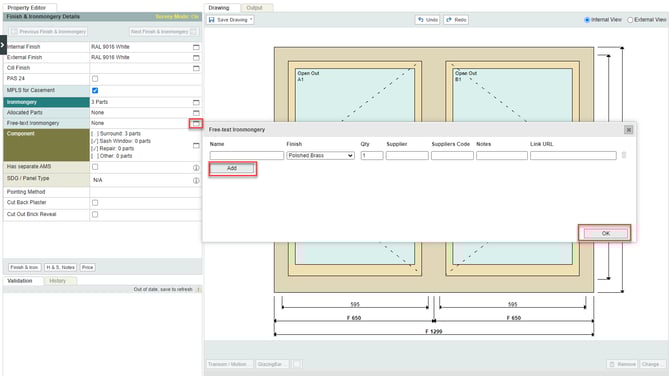

6. Add non-standard ironmongery parts
Use the free-text ironmongery menu for ironmongery parts not already added to integrate. Open the dialog window, click add, complete name, finish and quantity, click OK.
